There comes a time where NVMe SSDs are simple add-on cards that plug into the PCIe slot. Then thermals come into play, and that means heatsinks are needed. As it time goes by, the heatsink designs evolve to look good too. Then, the uprising of flashy RGB systems last year happened. The Plextor M9PeY is the culmination of those things, and it’s the pinnacle of Plextor’s SSDs.

Following the trend of the M8Se family of NVMe SSDs from last year, the M9PeY also has a total of 3 members in the family – a PCIe version, an M.2 version with a heatsink, and also another M.2 without the heatsink.

Let’s take a deep dive to see what the Plextor M9PeY truly offers. The one we have here is 512GB in capacity.

Unboxing

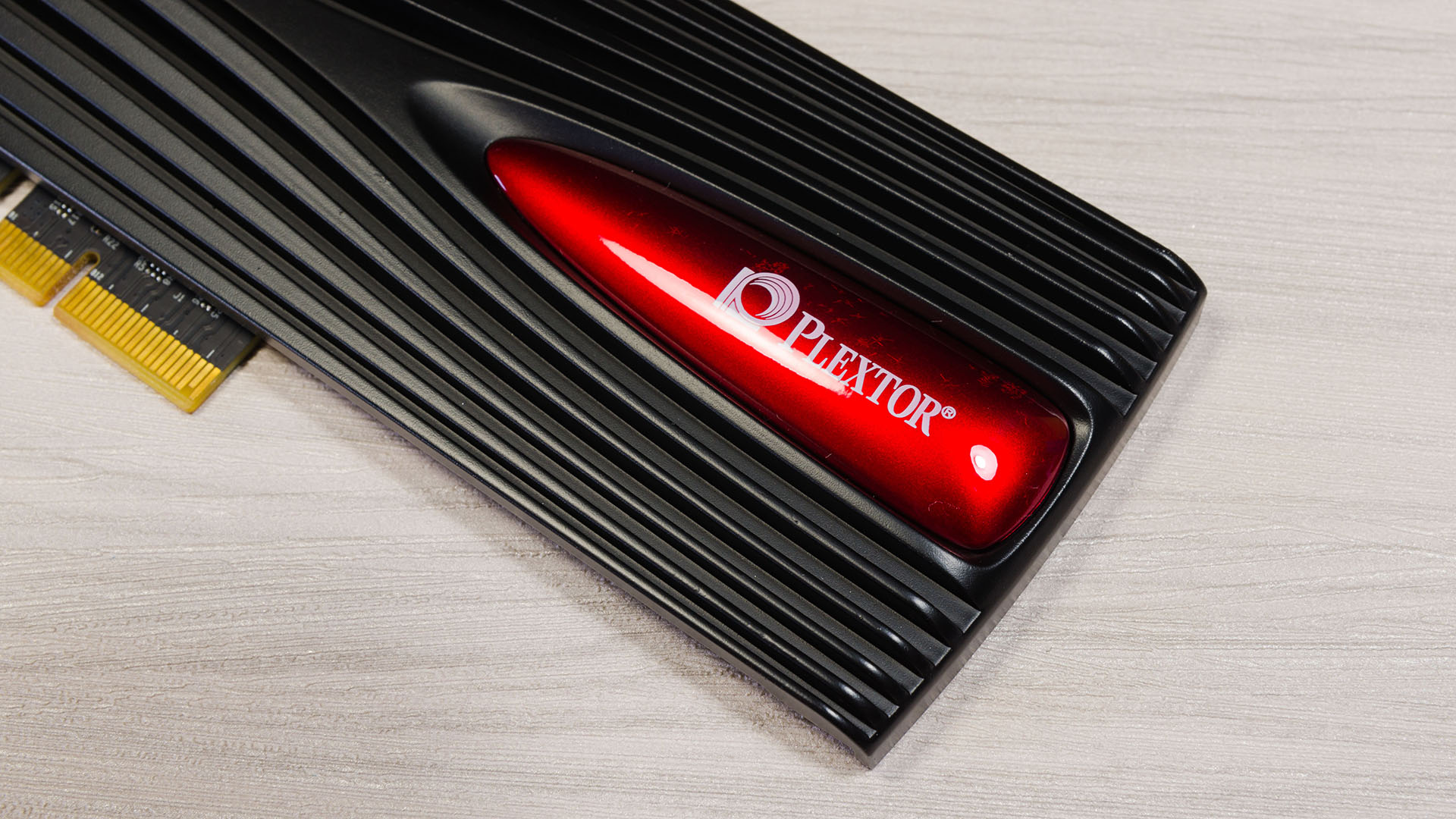

Plextor M9PeY header

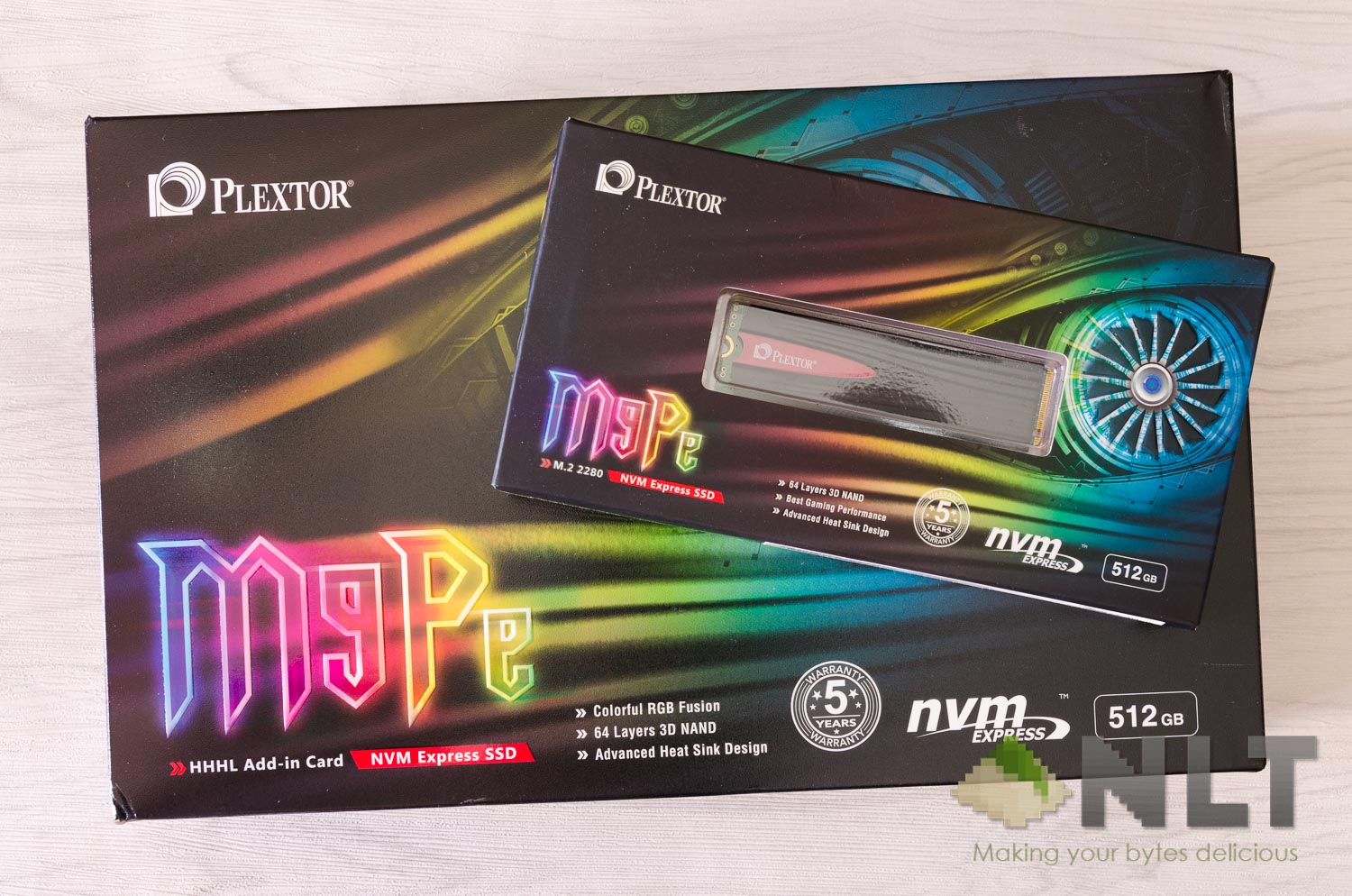

Funny enough, the box itself has a look that reminds me of Transformers where the image is zoomed into its left eye. The Plextor M9PeY’s packaging shows a fan-like eye with blades and with a multicolored gradient, starting from red on the left all the way till blue on the right. Even the M9Pe lexicons are in bright colors.

Also, there are a few feature highlights at the front of the packaging including “colorful RGB fusion” on for the M9PeY.

Plextor M9PeY

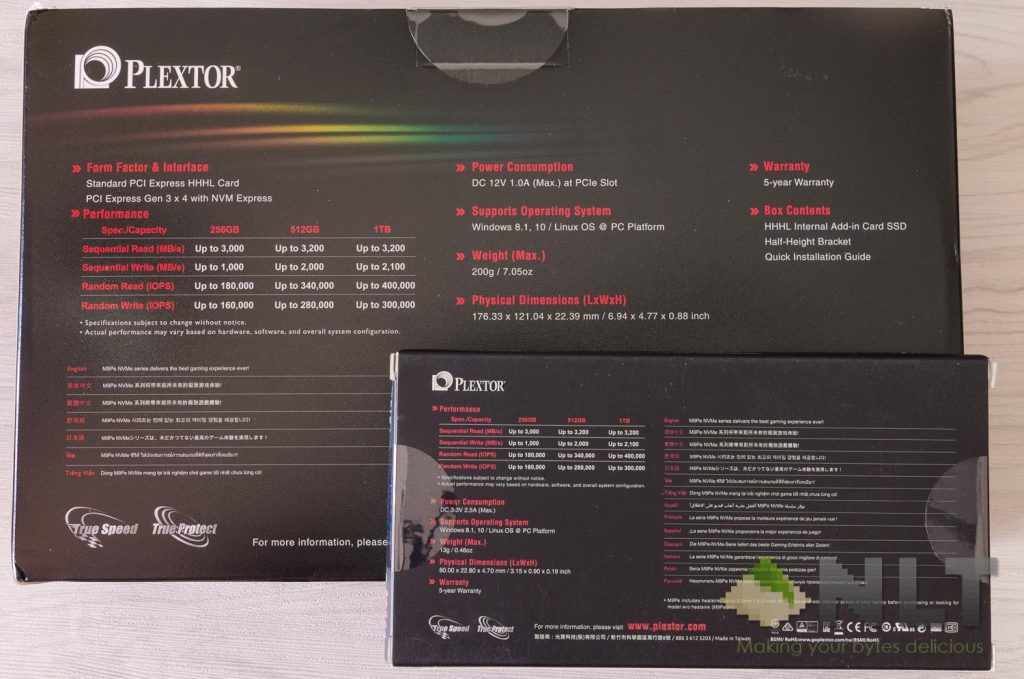

At the back of the packaging lists out the specs of the Plextor M9PeY and also what’s included in the box itself. Again, the one we have here is 512GB in capacity.

Plextor M9PeY

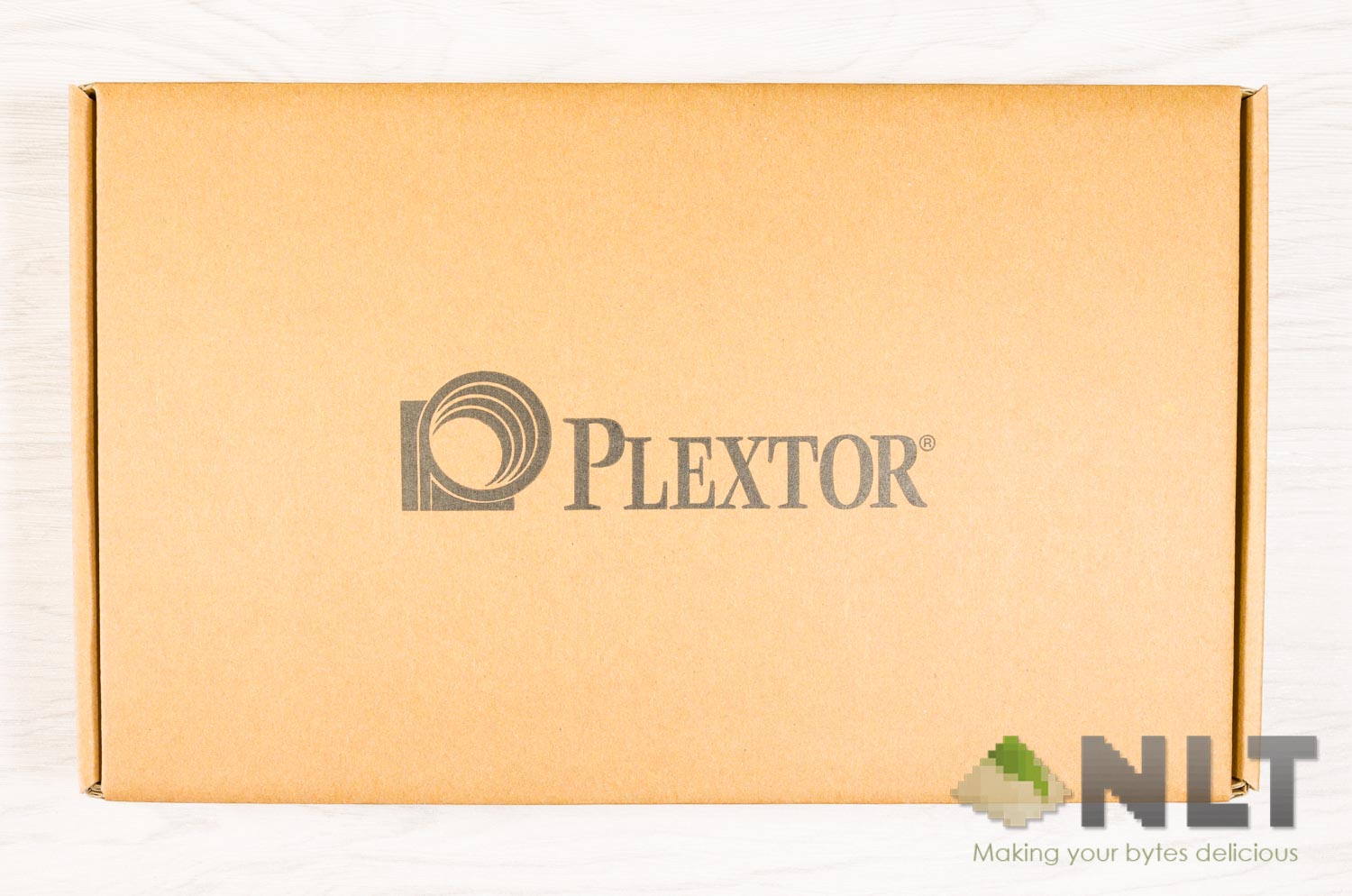

Opening up the box reveals yet another box. Opening the other box reveals a user manual on how to install the Plextor M9PeY. Underneath the user manual is the hard plastic shell that holds the Plextor M9PeY itself alongside with a half-height bracket and a screw.

Design

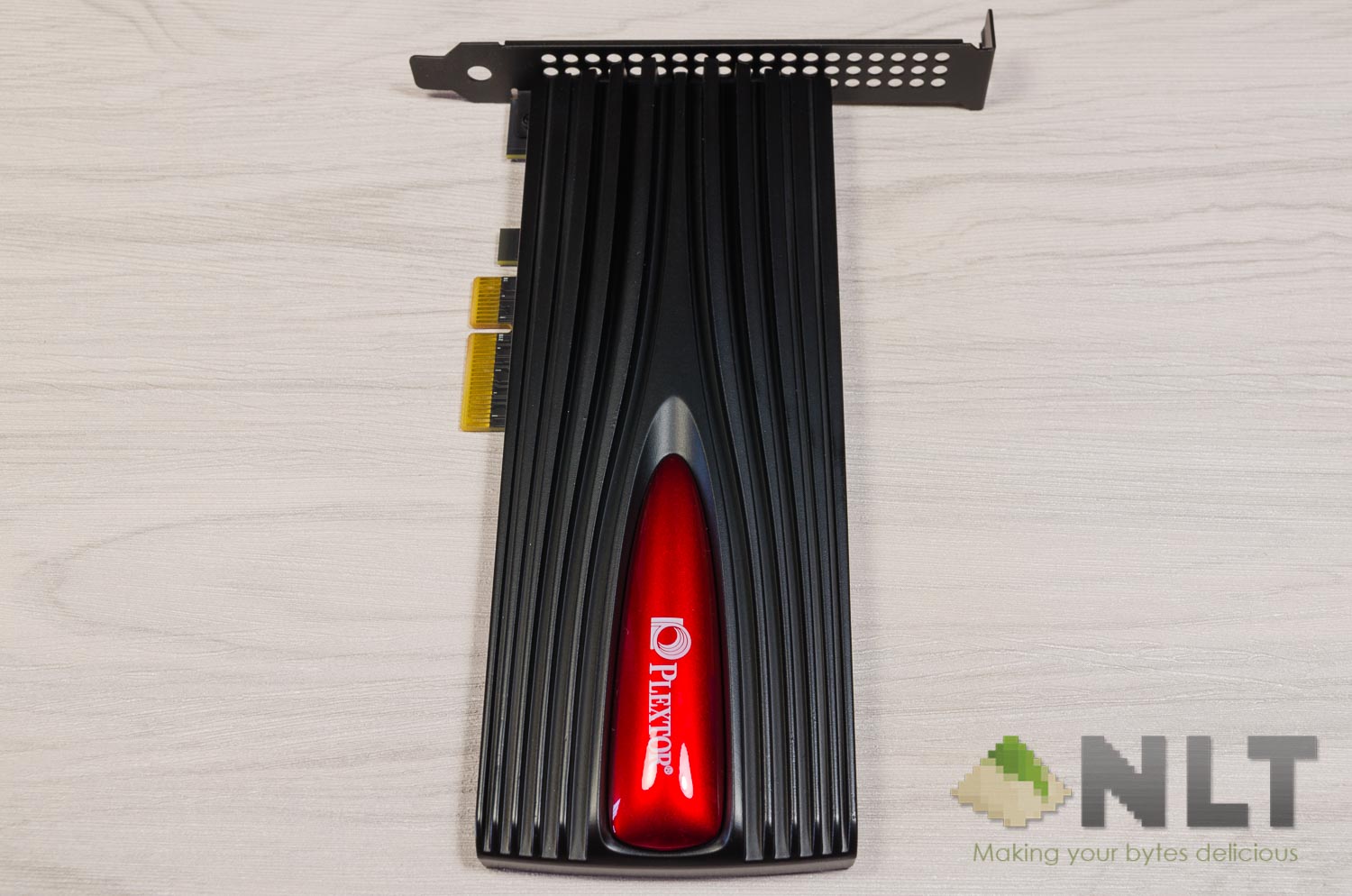

Plextor boasts that the Plextor M9PeY comes with an “advanced heat sink design” and by the pure looks of it, it’s pretty aerodynamic. When viewed from the top, the protruding fins is similar to what you’ll find on BMW’s M-series of vehicles’ shark fin when slicing the air at high speed. The protrusion of these fins also increases the surface area, hence better cooling.

We’ll see how the heatsink helps during our test later.

Plextor M9PeY

In contrast with Plextor’s M8Se from a year ago, the M9PeY now has the Plextor logo in red instead.

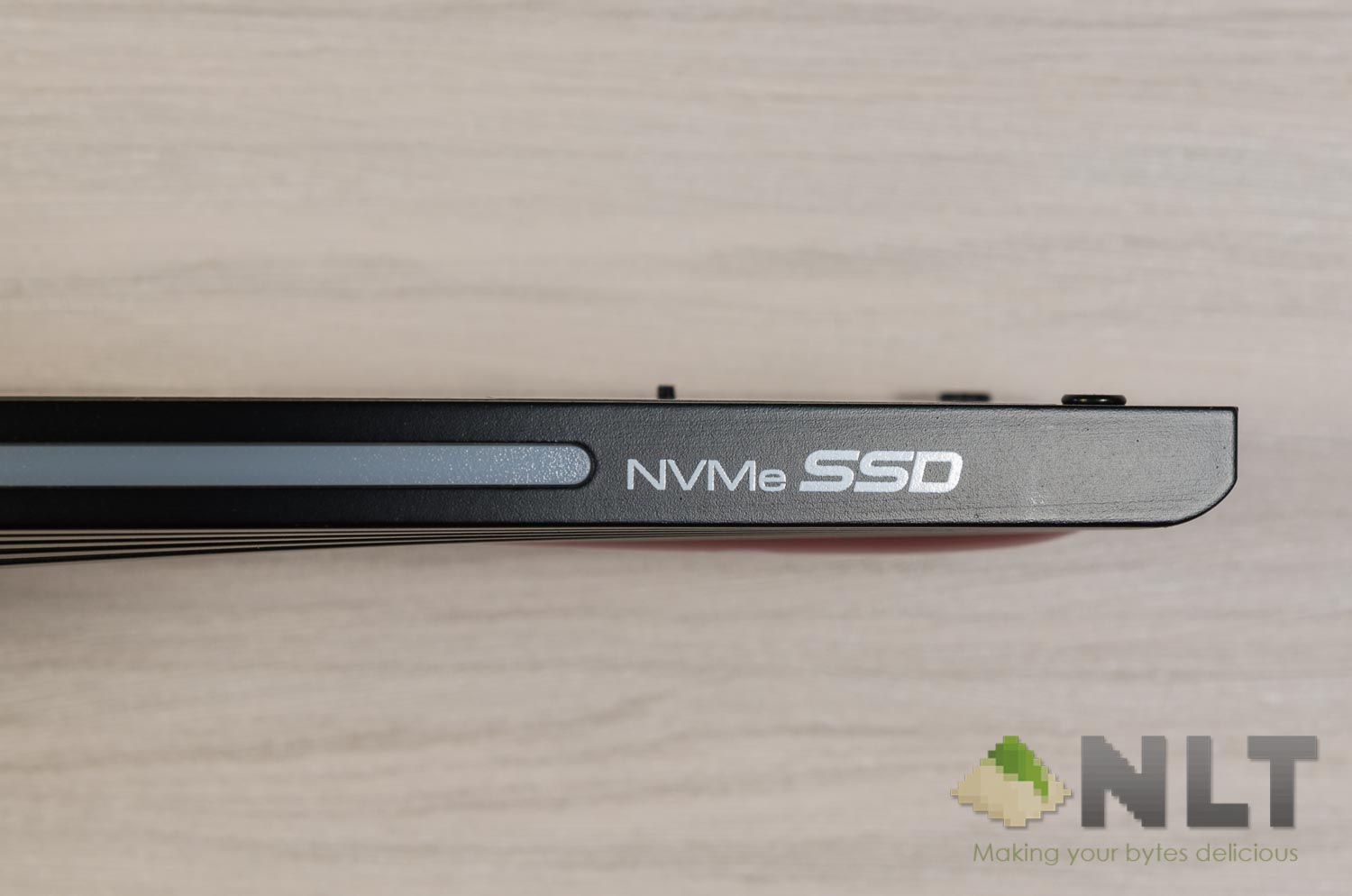

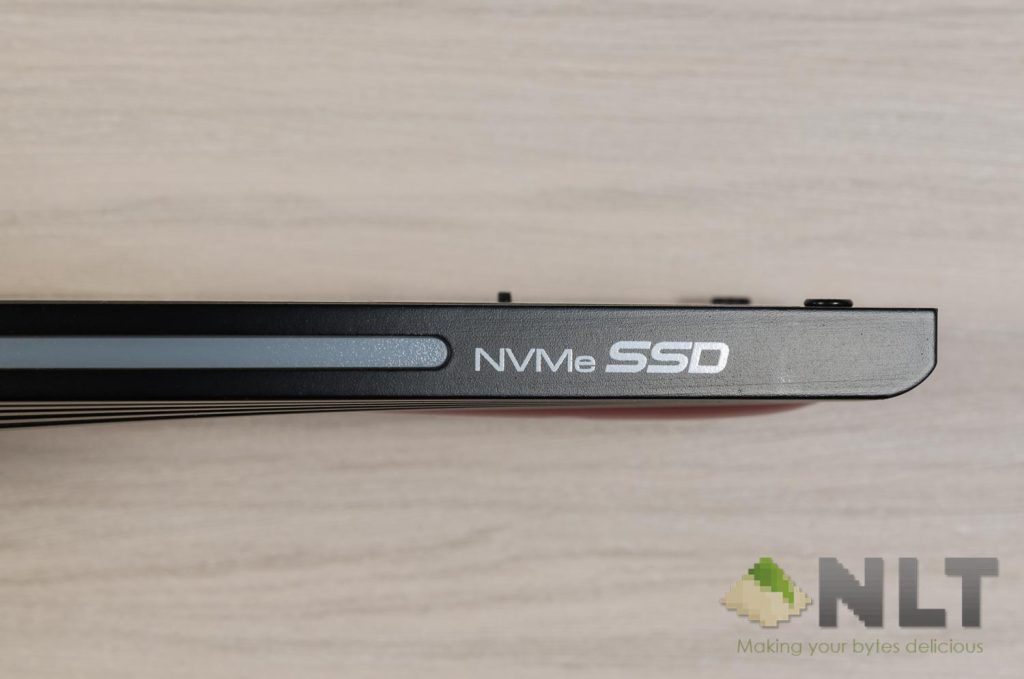

While looking from the side, the Plextor M9PeY has its width taper off as it approaches the right side. Of course, here’s where the magical color happens too. See that translucent strip? That’s where the RGB light will shine through.

Plextor M9PeY

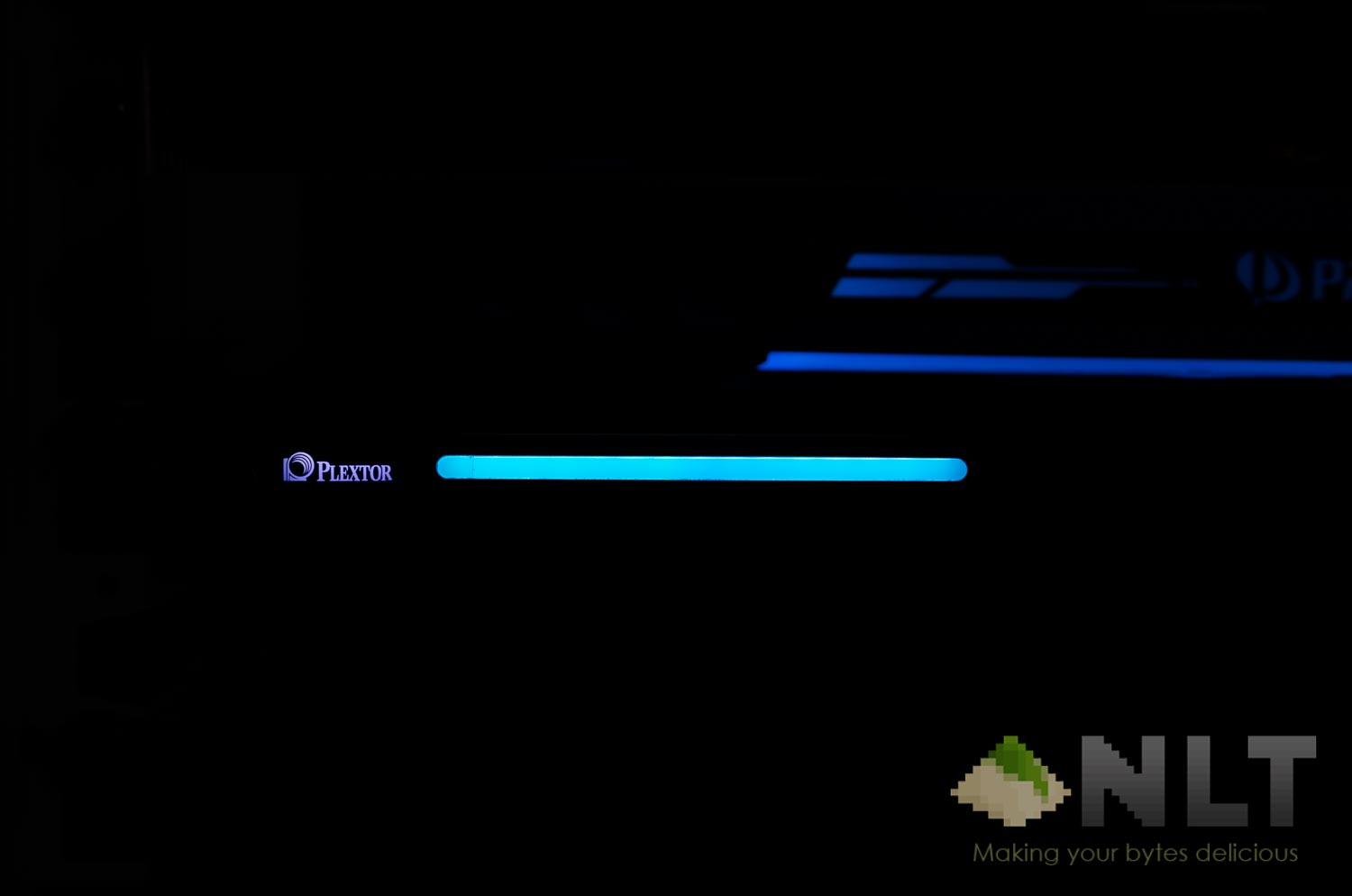

The RGB lighting cycles through all of the color with a smooth transition when idling, and goes psychedelic when there are read/write operations. Not sure why, but that’s how the Plextor M9PeY behaves.

Plextor M9PeY

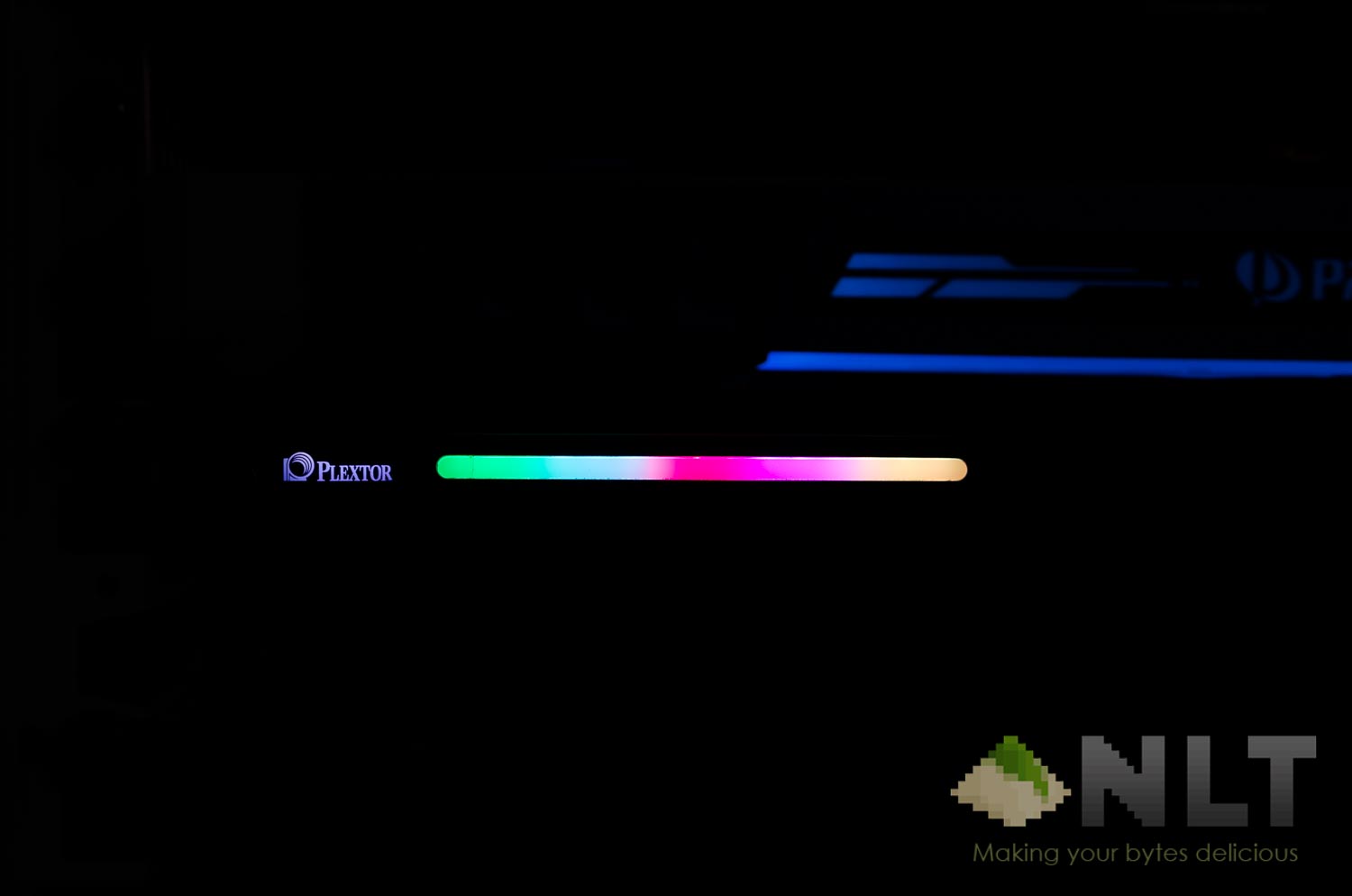

The Plextor M9PeY cycles through the color wheel when idle.

As of now, there is no way to control the RGB LED yet. The latest firmware update changelog states that it adds compatibility to the upcoming PlexTool that will come soon. Perhaps the Plextor M9PeY’s RGB can be controlled through the PlexTool upcoming? The new PlexTool has yet to be released by Plextor as the time of publishing this review.

Plextor M9PeY
The Plextor M9PeY while under load.

Plextor also included the half-height bracket which can be swapped by removing 2 screws from the back of the card.

Speaking of the back, the Plextor M9PeY comes with a blacked out color scheme – the heatsink and the PCB are black, with the Plextor logo in off-white color and printed at the corner.

Specs

The specifications vary between capacity to capacity – and the one we have here is the 512GB variant.

Performance

Sequential Read Speed* Up to 3,200 MB/s
Sequential Write Speed* Up to 2,000 MB/s
Random Read Speed* Up to 340,000 IOPS
Random Write Speed* Up to 280,000 IOPS

Environment and Reliability

Power Requirement DC 12V 1.0A (Max.) at PCIe Slot
Temperature 0°C ~ 70°C / 32°F ~ 158°F (Operating)
Shock 1500G (Max.) , at 1 msec half-sine
MTBF >1,500,000 Hours
Endurance (TBW) 320
Warranty 5 years

Compatibility

Operating System Supported Microsoft Windows 8.1, 10/ Linux OS
Agency Approval UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL
Command Set Support TRIM, S.M.A.R.T, IO queue, NVMe command
Interface M.2 PCIe Gen 3 x4 with NVM Express
Firmware Upgrade Supported

Form Factor and Connectors

Form Factor Standardized PCl Express Card with Half-Height/Half-Length
Power Connector DC 12V PCI Express Slot
Data Connector PCI Express Slot

Dimension and Weight

Dimension (L/W/H) 176.33 X 121.04 X 22.39 mm / 6.94 X 4.77 X 0.88 inch
Weight (Max.) 200g / 7.05oz

Package Contents

Drive 256GB / 512GB / 1TB SSD
Accessory Half-Height Bracket
Documents Quick Installation Guide

Testing Setup

Test hardware configuration

CPU Cooler Noctua NH-D15
CPU AMD Ryzen 7 1700
GPU Palit GeForce GTX 1080 GameRock
Motherboard ASRock Fatal1ty X370 Gaming K4
Memory Corsair Vengeance LPX DDR4 16GB
Primary Hard Drive Plextor M8SeGN
Power Supply Cooler Master MasterWatt 750
Chassis Sharkoon BW9000-W
Fans Noctua NF-F12

Benchmarks

Plextor claims that the M9PeY has a maximum sequential read speed of up to 3,200MB/s and the sequential write speed of up to 2,000MB/s. That’s an impressively high number and about 1,000MB/s faster in both read and write speeds compared to the M8Se from a year ago.

According to the results I got from CrystalDiskMark, the speeds were actually higher than the speeds stated. That raised my eyebrows high.

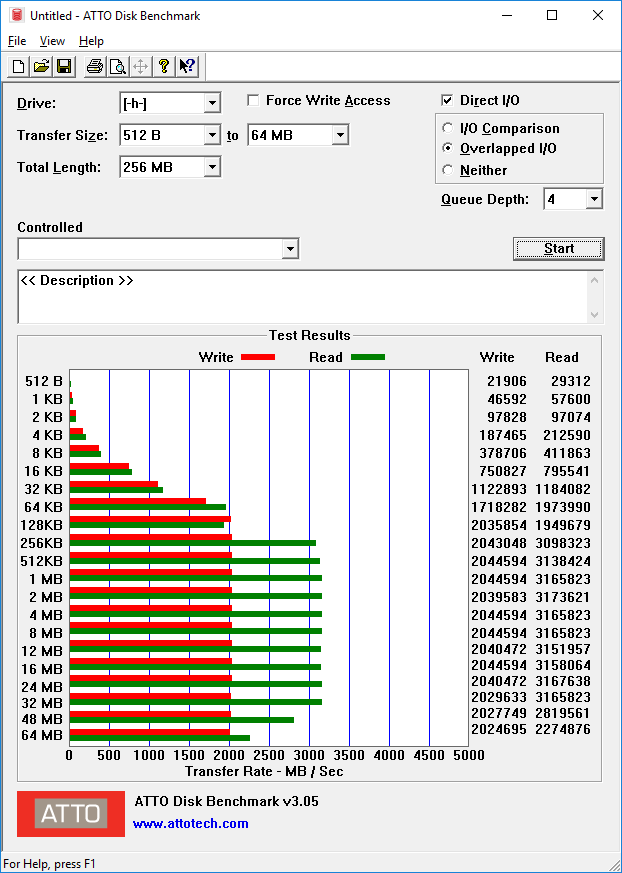

Using ATTO, the Plextor M9PeY proved itself once again that it is speedy by scoring an impressive 2GB/s write speed when it reached >256kB file size. The read speeds however, skyrocketed to 3GB/s once it reached >256kB file size.

Plextor M9PeY ATTO

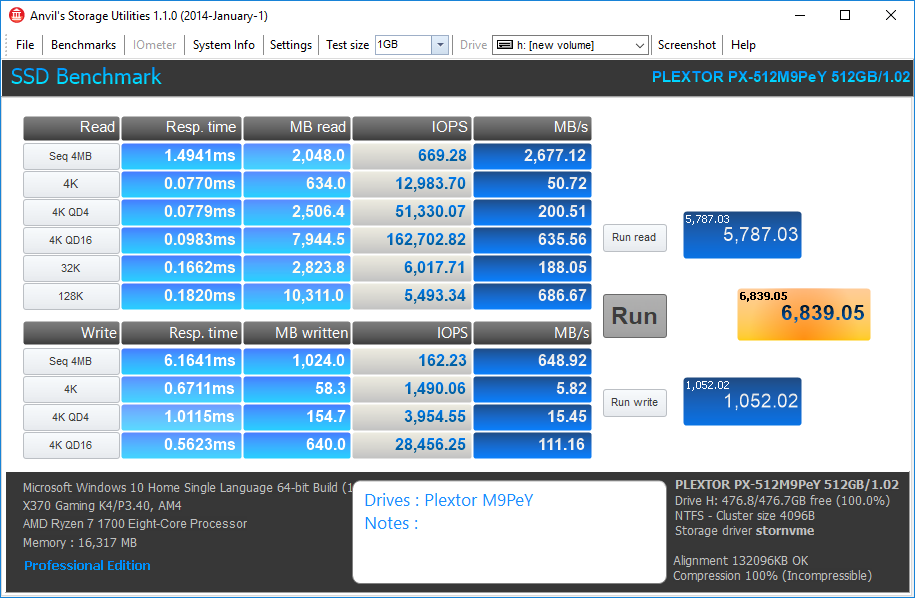

On Anvil’s Storage Utilities benchmark, the Plextor M9PeY is still able to score 2.6GB/s on sequential 4MB writes but only about 650MB/s in sequential 4MB writes.

Plextor M9PeY Anvil

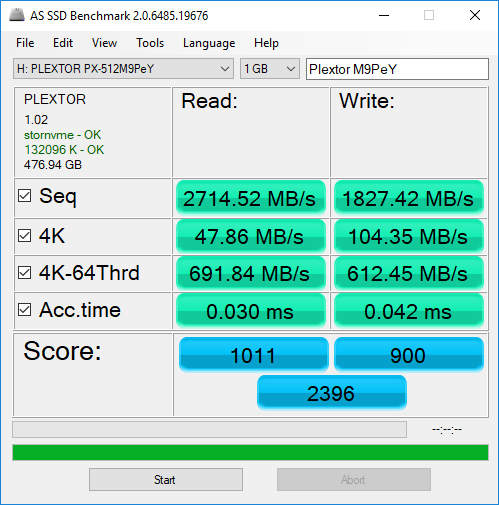

Lastly, AS SSD benchmark shows that the Plextor M9PeY can still perform well while bombarded with incompressible data.

Plextor M9PeY AS SSD

Real use case scenario

I’ve been editing many video these days and usually I’m using this Pendrive M.2 SATA III SSD as my project host drive and also my cache drive. The video that we take are from a total of 2 different DSLRs, hence I do need a really speedy drive to scrub through the footage smoothly.

I’m glad to say that the Plextor M9PeY manages to deliver this without a hitch. While editing the an intense video using this speedy SSD, I have zero complaints about the scrubbing lag. It is as if I have forgotten about the issue and it didn’t exist at all.

Temperature test

Last year, we did mention that temperatures of NVMe SSDs can rise to the point where it needs to thermal throttle itself to prevent any damage. This is particularly true for M.2 NVMe SSDs and we’ve also showed how to prevent it from happening. As for the Plextor M9PeY, it has all the components on the card moved away from any major heat-producing component and has a large heatsink slapped on it.

This is where the Plextor M9PeY shines – literally. While it’s in psychedelic mode under our synthetic load stress to ramp up the temperature, it only raised 10°C – from its idling 36°C to a measly 46°C. According to its specs sheet, the M9PeY’s thermal limit is at 70°C so there is quite a lot of thermal headroom here.

Wrapping up the Plextor M9PeY review

The Plextor M9PeY that we have here has the capacity of 512GB and it’s priced at USD $285. Doing some quick maths like Big Shaq reveals that it only costs about USD $0.5566 per gigabyte. That translates to about ~RM2.17 per gigabyte. Of course, the higher capacity NVMe SSD is thanks to Toshiba’s 64-layer NAND flash technology.

Compared to the M8Se from last year, the brand new Plextor M9Se series is just better in every single way. It now has RGB lighting, it’s much faster, and most important of all – it is available at a much cheaper price.

Though, the RGB lighting is still uncontrollable at this point. We’ll just have to wait for Plextor to release a brand new PlexTool that supports RGB control for the M9PeY.
