If you drop the wrong microscope into a wet school tray and proceed with the test, you will discover after you finally have all your tools–I mean, what? Under the microscope, you cannot put the hot air gun or the tweezers under the scope either.
The overwhelming majority of buying guides for this area focus on factory board houses where boards are larger, components are less cramped, and no one is holding a hand-held soldering iron at an angle to prevent the microscope arm from touching their vulnerable face. That is a tight fit, hot job, and not as skilled a fit as phone repair, and the microscope that you select has to survive it.
The Real Test: Can It Survive a Live BGA Reflow?
Ignore the spec sheet now, and envision the real repair: an iPhone logic board with a CPU or NAND chip, and a heated area under an iPhone’s lens, and you use hot air to lift up and/or place a CPU or NAND chip while your eyes are glued to the screen neighboring the target location. This is where, sorry to say, most budget microscopes come short; although the components themselves aren’t at fault, it is that there is simply not enough room underneath the lens when the hot air nozzle is in use.
This clearance is called working distance, and the phone repair working distance must be 80 mm-100 mm for it to fit between the lens and the board. Using a smaller item would require you to keep your tools at odd angles only to fit in the frame for reflow/soldering, which would slow down reflow/soldering work and increase the chances of touching the hot tool and damaging the lens. This one particular feature eliminates out of the water way more inappropriate microscopes than any other, so test it before you test anything different.
How Much Magnification Do You Actually Use?
There are many numbers that marketing copy loves: 180x, 300x, to name a few. With the zoom range continuously varying from 7x to 45x, almost all things on a phone’s logic board is covered in practice. The bottom is used to find out what components are in the chip or to align a chip before putting it in.
Attaching the high end to a BGA ball, after reflow or for a diagnosis of a bridge, requires the use of the high end. After 45x, the field of view gets so small that you aren’t looking at a usable working area anymore; you’re only looking at one solder pad, which is OK for observing, but not helpful for soldering.
The rule of thumb is that if a listing starts with maximum magnification, it does not tell anything about the working range or FOV at the maximum range.
Eyepieces, a Screen, or Both?
It affects not just the process of looking at the board, but the entire workflow.
You can view true 3D depth by just peering through the eyepieces of a stereo microscope, which is helpful when you’re placing a BGA chip down on pads you can’t see edge-on from. The hours spent at the eyepiece also equate to hours with the head bent forward, and this accumulates through the entire repair day.
Switch to the digital microscope with the HDMI monitor, and that strain is gone, and all of the repairs are already recorded on screen, to record, for training, or to dispute a warranty. What you sacrifice is some depth perception, but more modern digital DSLR’s and focus-stacked models are reducing that loss, as is the older “dual-sensor” digital type.

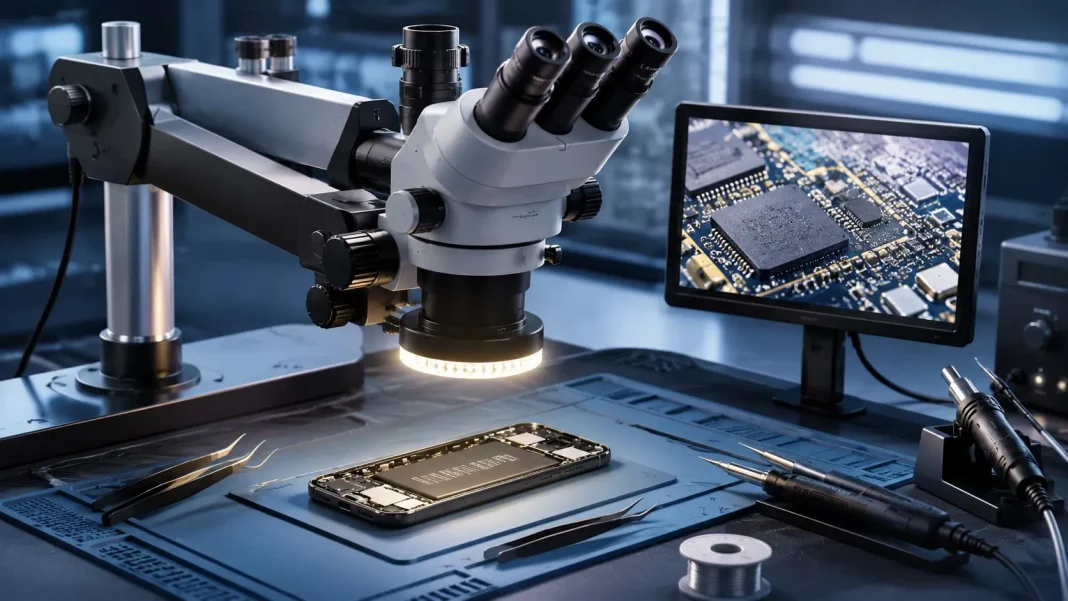

A trinocular setup provides you with two things: first, the eyepiece for soldering, and second, a camera port to a screen or recorder. Where hands-on rework and documentation for the customer are both activities performed by the same independent repair shop, then this is typically the real halfway house and isn’t about compromise.
| Setup | Depth perception | Neck strain | Built-in documentation | Best for |
| Stereo (eyepiece) | True 3D | Higher over long sessions | None | Precision reflow, solo work |
| Digital (screen) | Simulated, better on dual-sensor models | Lower | Built in | Documentation, QC, training |
| Trinocular | True 3D through eyepieces | Higher when using eyepieces | Yes, via camera port | Shops doing both soldering and recording |
The Glare Problem Nobody Mentions
A plain ring light shot directly at a reflective Gegenstand tends to wash out exactly the fault one is hoping to discover, be it a cold joint or a hairline bridge, which is why something as potent as the gold-plated pads, tristar ICs, or CPU shields is normally required.
Pay attention to lighting that may be dimmable, or if you often light and work on enclosures, you may want the extra expense of a diffused or coaxial light. This is because no photos on a product page can actually capture the “glare”. Before buying, do test lighting on a real reflective board (preferably with the BGA chip in frame).
Stands That Hold Position vs. Stands That Drift
As the phone board is rotated, turned over, and moved during one repair, the microscope stand must be able to move dynamically without losing its setting from the field of view each time. A boom stand allows the head to be swung through the entire range of movement, away from the board between movements, thereby increasing the time rapidity in high-volume shops.
Even one post with a long articulating arm can be used to work on a smaller bench, provided the arm does not freely slide off the pad under the load of the head. That is not such a minor thing as it sags and drifts in the middle of the repair, while you’re holding a heated tool near the board, or is it?
What Changes Between a $250 Scope and a $900 One
The basic one, around $150-$400, is a fixed or limited zoom stereo microscope equipped with a basic LED ring light. It will work for learning how to place BA and simple parts, but it’s typically the first place where working distance and arm stability are sacrificed to get that price.
From $400 to $900, continuous zoom trinocular scopes, boom stands, and dimmable lighting show up; this is the type of thing most independent repair facilities need day-to-day.
At $900 and above, we start to get camera resolution, focus stacking or digital imaging with two sensors, and a stand that doesn’t fall over at the end of a working day, instead of a demo. That tier is appropriate for higher volume stores or the trainer of other technicians more so for occasional board-level activity.
Fitting the Scope Into a Bench That’s Already Full
Naturally, there’s a microscope, which is an additional item that takes up space from a hot air station, a bench power supply, a multimeter, and a PCB holder. Make sure that the working distances determined above allow room not just for the board but also for your tools. Attach the arm in such a way that it is not in the way when the head is swinging from step to step.
Being able to adjust the light instead of using it as a set value is better because it allows for the use of a matte connector and a reflective BGA shield with different connectors. Use with a microscope for a phone repair stand that can tilt and rotate the board separately from your hands so that you’re not holding the phone up while soldering.
Most of the time, a phone-specific repair does not require a complete changeout of your bench; an adjustment is enough, utilizing a PCB Soldering Microscopes in place of your general PCB soldering workbench.
FAQs
1. What is the lowest magnification I can use with my iPhone?
Supported iPhone/Android Board-Level Zooming Range: 7x to 45x with continuous zooming.
2. Is a digital microscope or a stereo microscope better for phone repair?
A trinocular setup that offers both is the most practical choice, since it gives true depth perception for soldering and a camera feed for documentation.
3. How much working distance do I need under a phone repair microscope?
At least 80mm to 100mm, enough to fit a hot air nozzle, soldering iron, and tweezers underneath the lens at the same time.
4. Can I use a general PCB inspection microscope for phone repair?
Yes, but most industrial PCB scopes are built for larger boards and don’t account for the tight working distance and reflective component surfaces common in phone logic boards.
5. What lighting works best for inspecting BGA chips and shields?
Reduced glare on reflective solder balls and metal shields with an adjustable/dimmable ring light option with either a diffused or coaxial option.
6. Do I need a boom stand for phone repair, or is a single-post stand enough?
A boom stand makes it easier to swing the microscope clear of the board between repair steps, which matters in high-volume shops. A single-post stand with a long arm can still work for lower-volume repair.
7. How to acquire a good microsoldering microscope?
Most independent repair shops are in the $400 to $900 range, and professional-level repair shops begin at about $900, continuing upwards.
Conclusion
It isn’t magnification that makes the difference between a successful microsoldering microscope and an aggravating one; it’s whether you can find a place for your hands and tools underneath it in the actual repair.
Don’t skimp on working distance or lighting; select eyepieces, screen, or both according to usage of the material, and have the stand reflect the size of the repairs you’ll make if you have one at your shop. These 4 things on the spec sheet are what make or break a game.
