TUF Gaming is a new twist to ASUS’s existing TUF lineup of products, expanding it and positioning it to become the budget gamer lineup that every beginner seeks to have. They’re expanded the family into peripherals and pre-built systems as well.

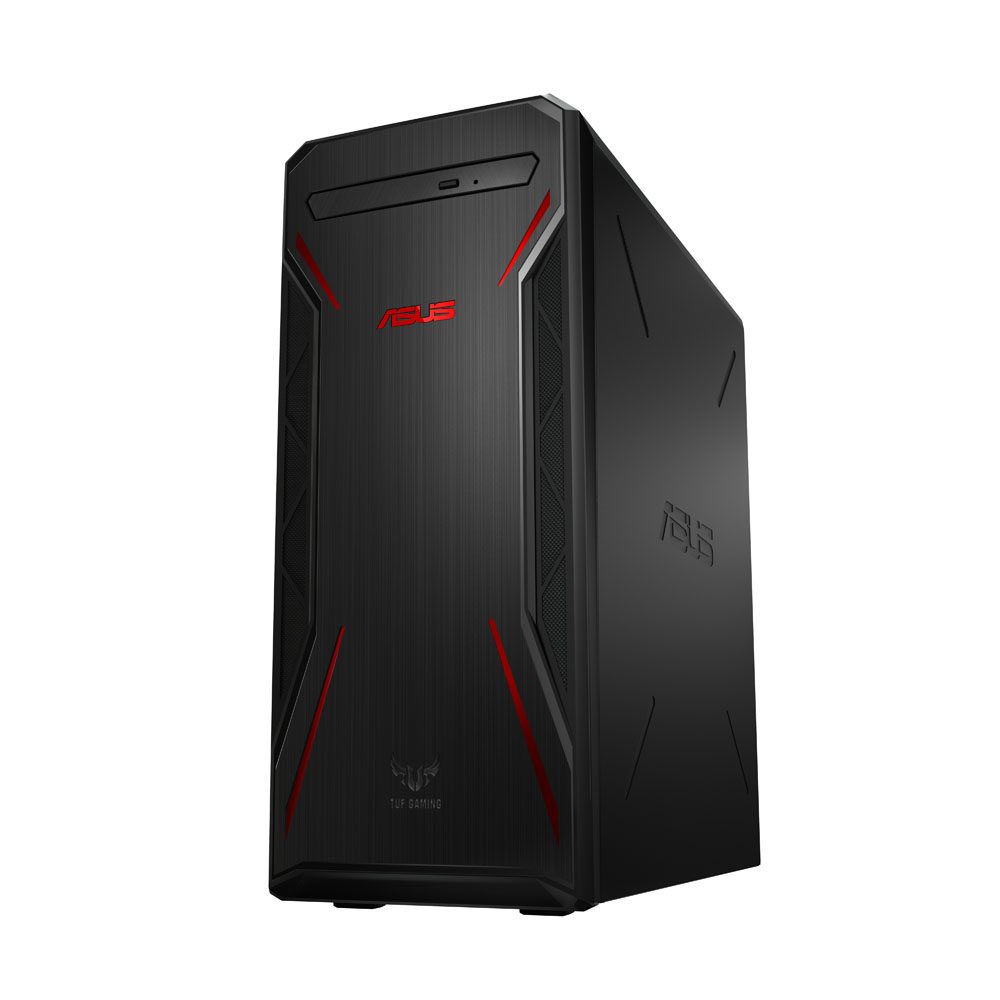

TUF Gaming FX10CP
When it comes to toughness, ASUS TUF Gaming FX10CP is designed to outlast all other desktop PCs in its class. This Windows 10 gaming desktop has been subjected to stringent quality testing for rock-solid stability and durability that goes far beyond standard. FX10CP is powered by an 8th Generation Intel Core i7 or i5 processor with NVIDIA GeForce GTX 10-Series graphics and features up to 32GB of 2666MHz DDR4 memory, a 512GB M.2 SSD, and superfast Intel Wi-Fi for seamless online gaming.
| Processor | 8th Gen Intel® Core™ i7-8700
8th Gen Intel® Core™ i5-8400 |
| Operating system | Windows 10 Home |
| Chipset | Intel® H310 |
| Motherboard | mATX |
| Graphics | NVIDIA® GeForce® GTX1050 2GD5 (1HDMI, 1DVI, 1DP)
NVIDIA® GeForce® GTX1030 2GD5 (1HDMI, 1DVI) |
| Memory | Up to 32GB RAM
2 x DIMM slots |
| SSD | M.2 SATA 128 / 256 / 512GB SSD |
| HDD | 3.5″ 7200 rpm 1TB HDD |
| Expansion slots | 1 x PCIe® x16 slot (occupied by discrete graphic card)
1 x PCIe® x1 slot 1 x M.2 connector (for Wi-Fi card) 1 x M.2 connector (for SATA) |
| Serial ATA | 4 x SATA 6Gbps ports |
| Drive bays | 1 x 9mm ODD (slim type; super-multi) |
| Audio | Realtek® ALC887 |
| LAN | Realtek® RTL8111H 10 / 100 / 1000 Mbps |
| Connectivity front | 2 x USB 3.1 Gen 1 Type-A
1 x mic in/headphone out |
| Rear | 2 x USB 2.0 Type-A
2 x USB 3.1 Gen 2 Type-A 1 x HDMI 1 x 3-in-1 audio jacks 1 x RJ45 |
| Wireless | Optional 802.11ac 2*2+ BT5.0 (*HW spec is BT 5.0 but
BT version may change with OS upgrades.) |
| Accessories | 1 x warranty card
1 x power cord 1 x quick manual 1 x keyboard |
| 1 x mouse | |
| Size | 18 x 36.1 x 46cm (W x D x H) |
| Weight | 8 kg |
The TUF Gaming FX10CP will be available starting at USD $799 on June 2018.

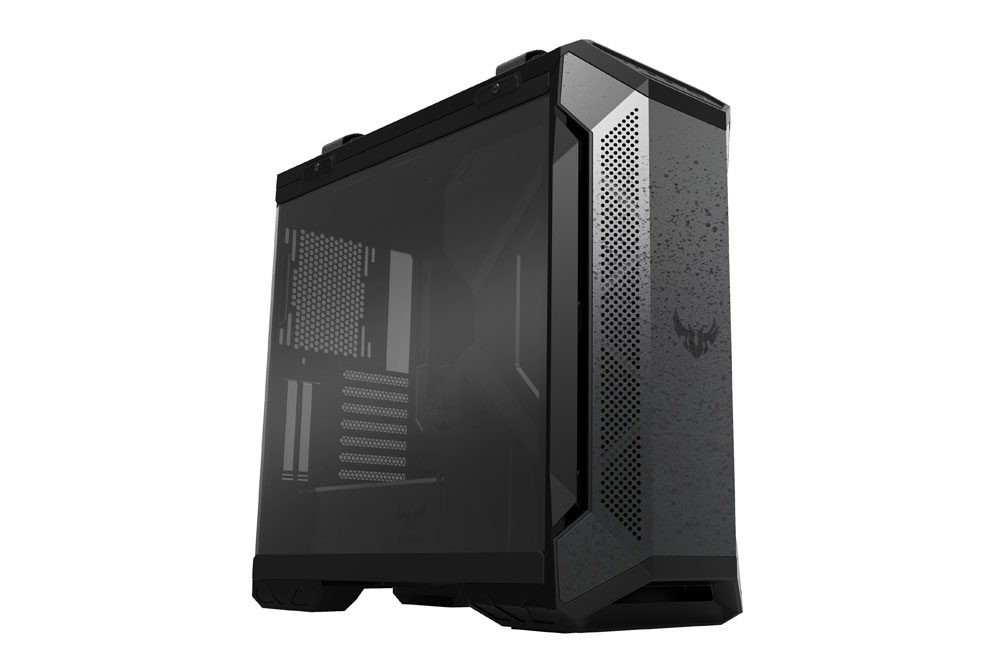

TUF Gaming GT501 Chassis
TUF Gaming GT501 is TUF Gaming’s first PC chassis. With the TUF spirit of quality, it features superior cooling and exceptional stability and durability. GT501 also features strong steel construction, ergonomic carry handles and an airflow-aiding layout. GT501 includes a 4mm-thick tempered-glass side panel with an exclusive mechanical hinge and a metal front with a custom spatter pattern. GT501 maximizes cooling performance in an EATX space, with three powerful 140mm TUF Gaming fans built in. Space is reserved for dual 360mm radiators at the front and top and for a 140mm radiator at the rear. Its front panel is designed to increase airflow.
| Motherboard compatibility | E-ATX, ATX, M-ATX, Mini-ITX |
| Dimensions | 465 x 249 x 489mm |
| Weight | 10 kg |
| Material | Steel, Tempered Glass, ABS plastic |
| I/O port | 2 x USB 3.1 Gen 1
Headphone Microphone |
| Expansion slots | 7 x Horizontal
2 x Vertical |
| Radiator compatibility | Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm Rear: 140mm |
| Maximum GPU length | 460mm |
| Pre-installed fans | Front: 2 x 140mm PWM Fans
Rear: 1 x 140mm PWM Fans |
The TUF Gaming GT501 Chassis will be available in August or September with the price of USD $129 to $149.

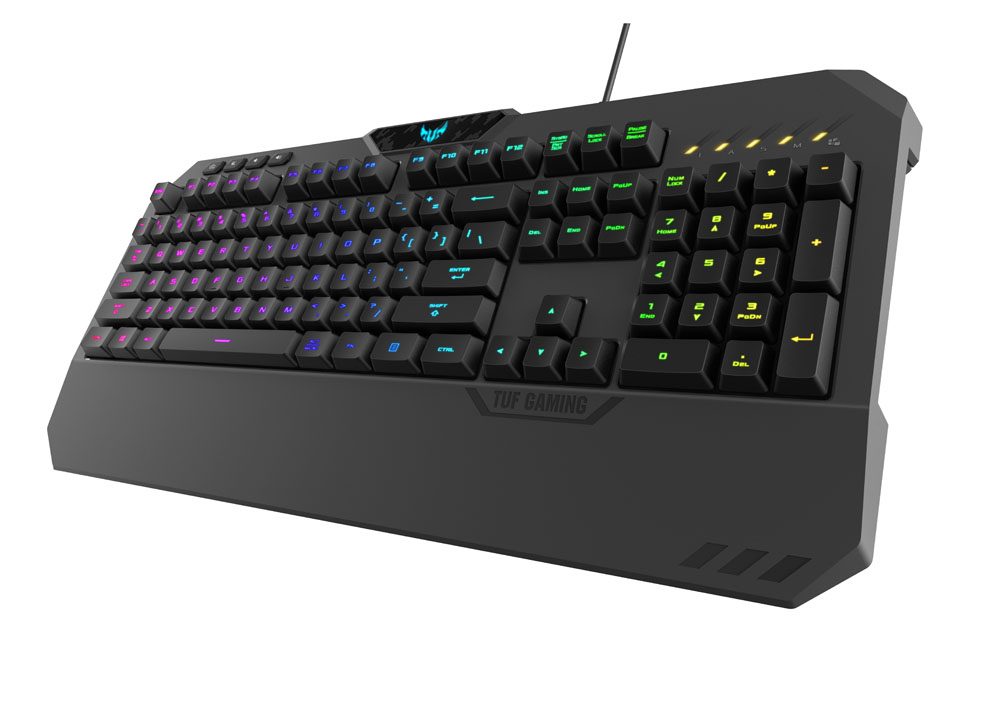

K5 Keyboard
The TUF Gaming K5 Keyboard is designed to perform and built to last. Engineered to offer the crisp tactility and responsiveness of the mechanical switch on a soft-cushioned membrane, the TUF Gaming Mech-Brane key switches combine the best of two worlds to offer you a new gaming sensation. Spill-resistance tested up to 60ml, and a specialized, highly-durable TUF coating ensures extended durability and reliable gaming. The K5 also features 5 individually customizable lighting zones powered by Aura Sync, dedicated media keys positioned on the left for instant access with your keyboard hand, and an integrated ergonomic wrist rest for additional comfort.
| Key switches | TUF Gaming Mech-Brane switches |
| Connection | Wired USB 2.0 |
| Layout | Full size |
| Actuation force | 47g |
| Distance to actuation point | 3.7mm |
| Keyboard backlighting | 5-zone Aura Sync RGB lighting |
| Anti-ghosting | 24-keys rollover |
| Polling rate | 1000Hz |
| Macro keys | All keys programmable |
| Macro recording | On-the-fly recording support |
| Dimensions | 460 x 218 x 40mm |
| Weight | 1050 g |
| Cable type | Regular rubber USB cable |
| Cable length | 1.8 meter |
| Support OS | Windows 10, Windows 7 |
| Package contents | 1 x TUF Gaming K5 Keyboard |
| 1 x User documentation | |
| Basic hot keys | Profile switch:
Fn + 1/ 2 / 3 / 4: Profile 1 – 4 (4 is default profile) |
| Clear customized settings from onboard memory:
Hold Fn + ESC for 15 seconds |
|
| Winkey Lock:
FN + Win |
|
| Lighting hot keys | Lighting effects switch within a profile:
Fn + Right or Fn + Left |
| Hot keys for special functions | On-the-fly macro recording:
Step 1: Fn + Right-ALT to start recording Step 2: Fn + Right-ALT to end recording Step 3: assign Macro Key |
| Repeat acceleration:
Fn + Left-ALT + F1: 1X Fn + Left-ALT + F2: 2X Fn + Left-ALT + F3: 3X Fn + Left-ALT + F4: 4X |
The K5 Keyboard will be available in Q3 2018.

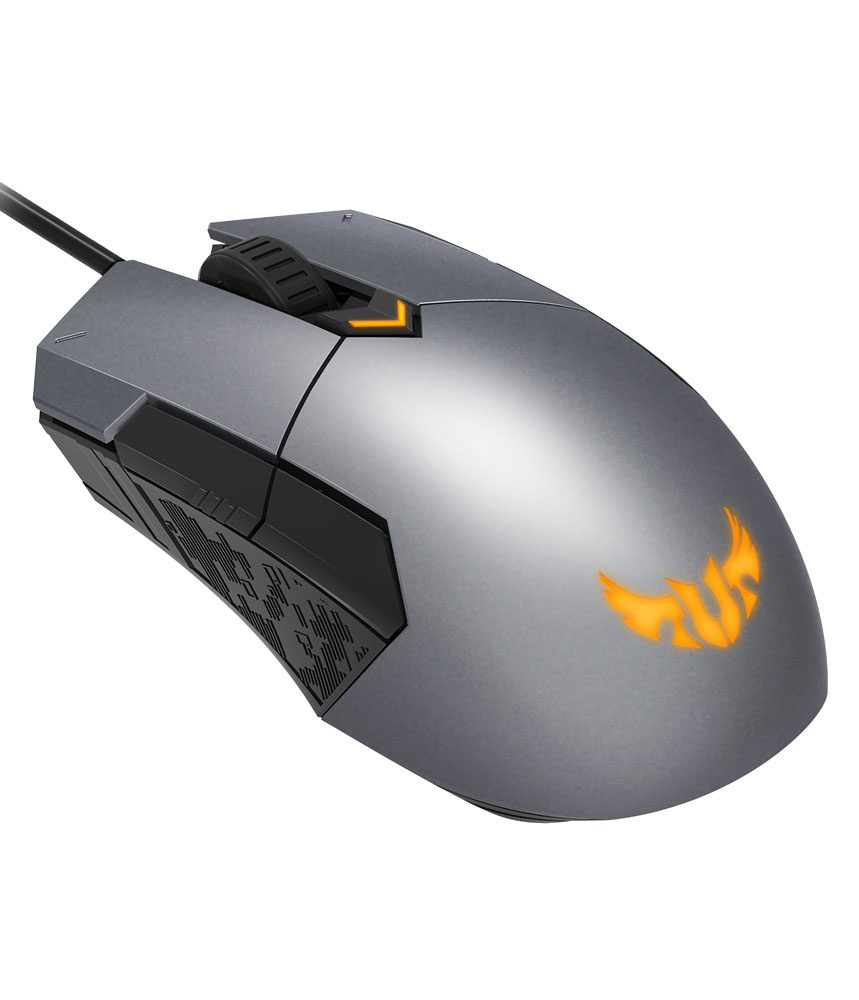

M5 Mouse
The TUF Gaming M5 Mouse is a lightweight, ergonomic ambidextrous gaming mouse crafted for fastreaction gameplay using claw or fingertip grip. The mouse packs a gaming-grade 6,200 dpi optical sensor for swift and precise tracking, with a DPI button and indicator for on-the-fly sensitivity adjustments. Heavy-duty Omron switches rated to 50 million clicks, specialized TUF coating and high-endurance Teflon feet ensure exceptional durability. Powered by Aura Sync, the full color spectrum and various lighting effects are at your command to truly make the mouse your own.
| Connectivity | Wired USB 2.0 |
| Tracking resolution | 6200 dpi optical sensor |
| Tracking speed | 220 ips |
| Tracking acceleration | 30g |
| Responsiveness | 1000Hz polling rate |
| Switch | Omron 50M |
| Buttons | 6 programmable buttons |
| Lighting | RGB TUF Gaming Logo |
| ASUS Aura Sync RGB lighting | |
| Cable type | Regular rubber USB cable |
| Cable length | 1.8m |
| Operating system | Windows 10, Windows 7 |
| Dimensions | 111.4 x 61.4 x 41.8mm |
| Weight | 110g (with cable), 85g (without cable) |
| Package contents | 1 x TUF Gaming M5 Mouse |
| 1 x User documentation | |
| Basic hot keys | Profile switch: |
| Profile 1: dpi button + side button 2
Profile 2: dpi button + side button 1 Profile 3: dpi button + scroll wheel button |
The M5 Mouse will be available in Q3 2018.

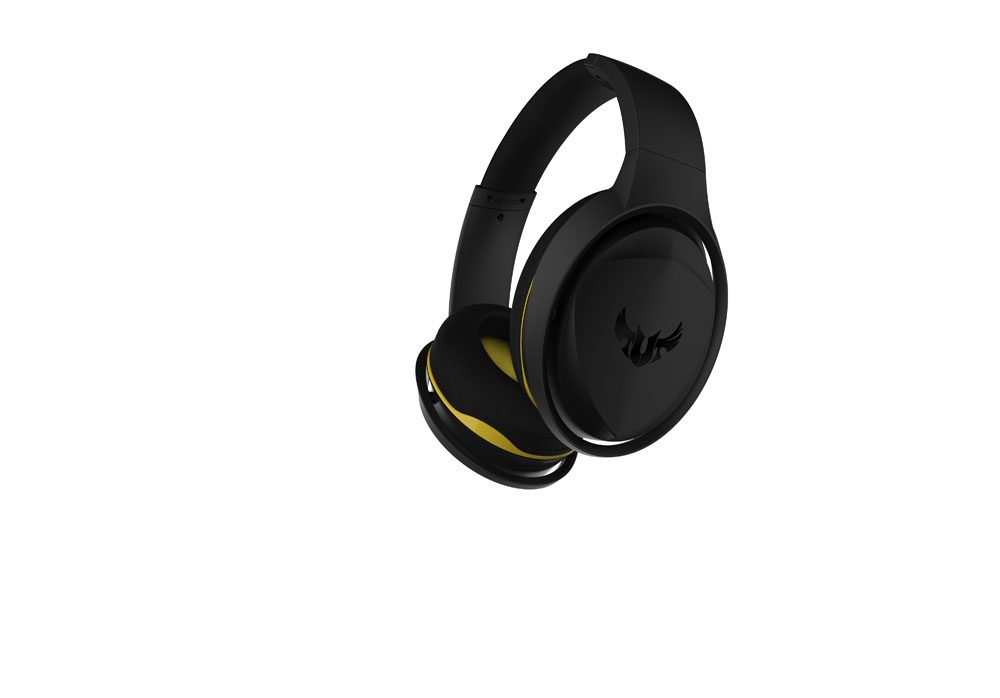

H5 Headset
The new TUF Gaming H5 Headset gives gamers incredible gaming experiences. With button-enabled 7.1 virtual surround sound, exclusive ASUS Essence driver, and airtight chamber technology, TUF Gaming Headset delivers upgraded immersive audio. TUF Gaming Headset is lightweight and features a durable and cool stainless-steel ID design. It offers cross-platform support for PC, MAC, PS4, XBOX One, mobile phone and Nintendo Switch.
| Speaker driver dimension | 50mm |
| Driver material | Neodymium magnet |
| Impedance | 32 ohms |
| Frequency response | 20Hz ~ 20kHz |
| Cable length | 1.5m |
| Microphone | |
| Type | Analog |
| Pick-up pattern | Unidirectional |
| Frequency response | 100~10kHz |
| Sensitivity | -40dB |
The H5 Headset will be available in Q3 2018.
TUF Gaming Alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Adata, Antec, Apacer, Ballistix, Cooler Master, Corsair, Deepcool, Enermax, G.Skill, Geil, In Win, Silver Stone, Scythe, and Team Group. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM — guarantee both compatibility and aesthetic harmony. We’re continually increasing partnerships to make the TUF Gaming Alliance ever stronger.
| Chassis | InWin 101 |
| Cooler Master MB500 | |
| CPU Cooler | Cooler Master MA410M, MA410P, MA620P, ML 120L RGB |
| DeepCool GAMMAXX GT | |
| Silver Stone AR01 | |
| Enermax LIQMAX TGA | |
| Scythe Kotetsu MarkII TUF GAMING ALLIANCE
Scythe Mugen5 TUF GAMING ALLIANCE Scythe Choten TUF GAMING ALLIANCE |
|
| DRAM | Ballistix Sport AT 2666, 3000 |
| G.Skill Sniper X 2400, 3000, 3200, 3600 | |
| Corsair VENGEANCE RGB PRO 3000, 3200 | |
| Team Group VULCAN TUF GAMING ALLIANCE 2400, 3000,
3200, 3600 |
|
| Apacer PANTHER RAGE RGB TUF Version 3200 | |
| ADATA SPECTRIX D41 3200 | |
| Antec 5 Series TUF GAMING 3000 | |
| Geil Super Luce RGB SYNC Series TUF Gaming Alliance
3000 |
|
| PSU | Cooler Master MasterWatt 450W, 550W, 650W, 750W |
| Silver Stone Essential series 550W, 650W, 750W | |
| Antec NeoEco 550W, 650W | |
| Enermax RevoBron TGA 500W, 600W, 700W |
